Wireless Display Thermal Camera
Thermal camera for the Waveshare ESP32-S3-Touch-AMOLED-1.8 and MLX90640, with a wireless second screen
About this project

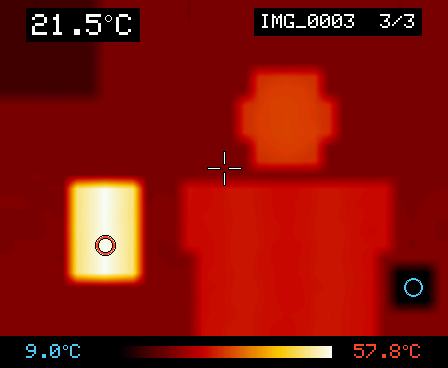

A Waveshare ESP32-S3-Touch-AMOLED-1.8 with a Waveshare MLX90640 module becomes a handheld thermal imager. The 32×24 sensor frame is upscaled to fill 448×336 in landscape, with the crosshair temperature at the centre, red and blue rings on the hottest and coldest spot, and a colour bar that rescales itself to the scene; it updates 16 times a second. BOOT cycles the palette and toggles °C/°F, while PWR writes a BMP of the screen plus a CSV of raw temperatures to a FAT32 microSD card. A second board of the same model, flashed with the same firmware but no sensor, turns into a wireless screen over ESP-NOW with no router or pairing. It is an Arduino sketch needing the GFX library and OPI PSRAM. It is a hobby imager, expressly not a medical, fire-alarm or safety device, and the wireless link is unencrypted broadcast.
Open project preview ↗Hardware
Native board: Waveshare ESP32-S3-Touch-AMOLED-1.8
Boards: Waveshare ESP32-S3-Touch-AMOLED-1.8 ESP32-S3 AMOLED
Supported hardware: Waveshare ESP32-S3-Touch-AMOLED-1.8, ESP32-S3 AMOLED. Confirm the exact board revision and pin map in the upstream repository.
What the source supports
Upstream evidence: Reviewed from public README media at commit b6efab2ec065 under MIT. Firmware was not executed.
Media credit & rights
Upstream project media · rights remain with its owner · Credit: highdrone
Screenshots decoded from the upstream README at a pinned commit. Repository code and firmware were not executed; the license texts are included in the preview package.
View original source ↗ Copyright & removal · Reviewed
