CYD RGB LED Matrix HUB75 Retro Clock
Retro-style RGB LED Matrix (HUB75) clock for ESP32-2432S028 (CYD). Emulates 64×32 RGB LED Panel with HUB75 protocol on 320×240 TFT. NTP sync, web config, OTA updates.
About this project
No real LED panel is needed: this firmware paints a 64×32 HUB75 matrix, dot by dot, onto the 320×240 TFT of a Cheap Yellow Display (ESP32-2432S028R). Seven-segment digits morph as they change, and dot diameter, gap, colour and brightness are adjustable from a browser page that also mirrors the framebuffer. Time comes from NTP, with 88 timezones in a dropdown and nine preset servers. A browser installer uses Web Serial and needs desktop Chrome, Edge or Opera; a board already running the firmware is offered an update that keeps settings and WiFi. Building locally means VS Code plus PlatformIO. Over-the-air updates go through ArduinoOTA on port 3232, and the default password should be changed before deployment.
Open project preview ↗Hardware

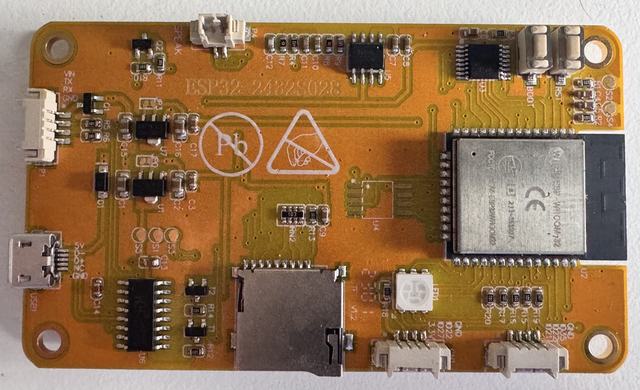

Boards: ESP32-2432S028R (CYD)
Supported hardware: ESP32-2432S028R (CYD). Confirm the exact board revision and pin map in the upstream repository.
What the source supports
Upstream evidence: Reviewed from public README media at commit 199c666cc9e8 under MIT. Firmware was not executed.
Media credit & rights
Upstream project media · rights remain with its owner · Credit: anthonyjclarke
Screenshots decoded from the upstream README at a pinned commit. Repository code and firmware were not executed; the license texts are included in the preview package.
