PROJECT / ESP32 APPLICATION
Esp32emu
Shared board runtime (display, touch, SD, WiFi, Bluetooth and USB keyboards and mice, LVGL setup screen, web page, console, debugger), CPU cores (68000/68020/68030, Z80…
About this project

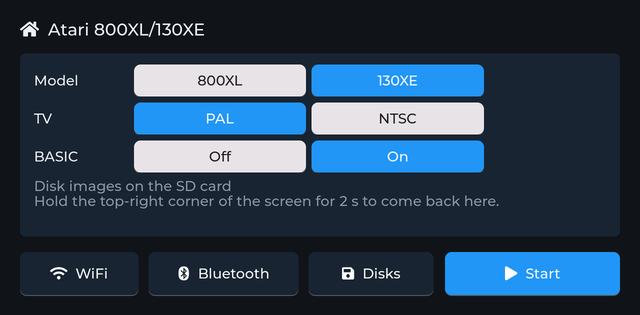

A shared runtime that handles everything an 8/16/32-bit computer emulator needs on two boards — display, touch, SD card, Wi-Fi with NTP, Bluetooth keyboards and mice, a setup screen, a web page for disk images and a serial console — plus the CPU cores: 68000/68020, Z80, 6502, 65C816, 6809, ARM2 and a uPD765 floppy controller. A machine describes itself in one emu_machine_t struct and emu_run() does the rest; the build target picks the board, esp32s3 for the Makerfabs MaTouch ESP32-S3 7" (1024×600, 8 MB PSRAM) or esp32p4 for the M5Stack Tab5 (1280×720, 32 MB PSRAM). It is ESP-IDF 5.5.4 components, not a standalone app, and powers twelve separate emulator projects including Atari STE, Macintosh, Amstrad CPC, ZX Spectrum and Commodore 64.
Open project preview ↗Hardware
Native board: M5Stack Tab5
Boards: M5Stack Tab5 (ESP32-P4)
Supported hardware: M5Stack Tab5 (ESP32-P4). Confirm the exact board revision and pin map in the upstream repository.
What the source supports
Upstream evidence: Reviewed from public README media at commit 8a0b5f936e18 under MIT. Firmware was not executed.
Media credit & rights
Upstream project media · rights remain with its owner · Credit: rlucencic
Screenshots decoded from the upstream README at a pinned commit. Repository code and firmware were not executed; the license texts are included in the preview package.
View original source ↗ Copyright & removal · Reviewed
