PROJECT / ESP32 APPLICATION
T5 E-paper Dashboard
Wi-Fi e-paper dashboard for the LilyGo T5 4.7" (ESP32-S3): photo frame, weather/news Digest, and a Home Assistant tile dashboard — portrait, browser-side dithering…
About this project

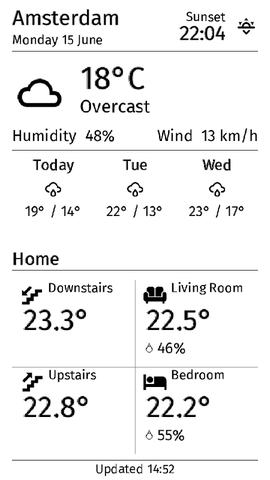

A LilyGo T5 4.7-inch frame that does more than hold photos. Its web UI, served from the device, drops an image into a slideshow, or switches to a portrait digest of Open-Meteo weather, sunrise/sunset, a three-day forecast and two rotating RSS headlines, or to a 2×2 grid of Home Assistant tiles for temperature, CO₂, storage and the like. The panel is a 960×540 ED047TC1 with 16 grey levels, and photos are dithered in the browser to a 259200-byte 4-bit framebuffer, so the ESP32 never decodes a JPEG. Flashing uses PlatformIO; later updates go over Wi-Fi, and dual-OTA slots fall back if an image is bad.
Open project preview ↗Hardware
Native board: LilyGO T5 4.7
Boards: ESP32-S3
Supported hardware: ESP32-S3. Confirm the exact board revision and pin map in the upstream repository.
What the source supports
Upstream evidence: Reviewed from public README media at commit a51ba922e6c9 under MIT. Firmware was not executed.
Media credit & rights
Upstream project media · rights remain with its owner · Credit: Krasnov777
Screenshots decoded from the upstream README at a pinned commit. Repository code and firmware were not executed; the license texts are included in the preview package.
View original source ↗ Copyright & removal · Reviewed
