1.9-INCH ROUND LCD CLOCK AND CALENDAR / ESP32 APPLICATION

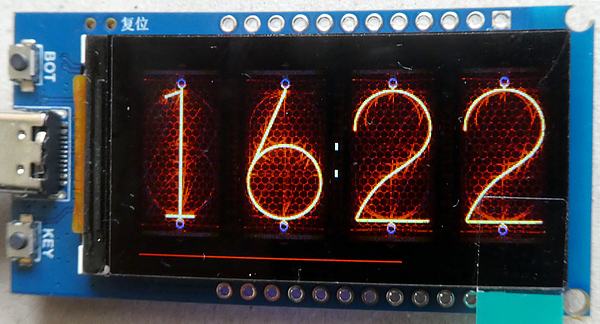

ESP32 S3 1 9 Inch ST7789 Display
By chance, I was able to figure out the correct pin assignments for the TFT display on the ESP32-S3 development board and use them to create a Nixie-style clock.
Hardware
Boards: ESP32-S3
Supported hardware: ESP32-S3. Confirm the exact board revision and pin map in the upstream repository.
What the source supports
Upstream evidence: Reviewed from public README media at commit 3d08d3a957e7 under MIT. Firmware was not executed.
Media credit & rights
Upstream project media · rights remain with its owner · Credit: AndroidCrypto
Screenshots decoded from the upstream README at a pinned commit. Repository code and firmware were not executed; the license texts are included in the preview package.
View original source ↗ Copyright & removal · Reviewed
